Radiator valves and couplings

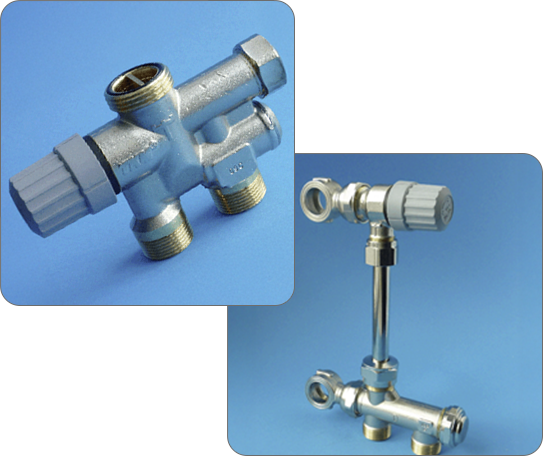

TKM
Mattsson Metal has owned the TKM brand since 2009. Under this brand, Mattsson Metal manufactures valves and valve couplings for a global market.
The TKM brand stands for the highest possible quality in radiator valves and valve couplings. Both the brand and the production unit in Kungsör were acquired in 2009 by Mattsson Metal, which had previously supplied the hot-pressed blanks.
Bottom connected 1 pipe
TKM M68 Bottom-connected valves, 1-pipe, floor
M68-RA 46F
Radiator presetting
Bottom-connected single-pipe valve with connection to the floor. The valve is reversible with the thermostat on the right or left. The radiator flow is presettable between 20-80%, the delivery setting is 40%. The flow direction is selectable, but the recommended flow direction is with the inlet furthest from the thermostat at high distribution ratios. The valve is recognizable by its conical hexagon socket for adjusting the radiator flow, which is done using a setting template and a 4.5 mm hexagon socket wrench.
Dimension Item number
M22x1.5 M6846F6

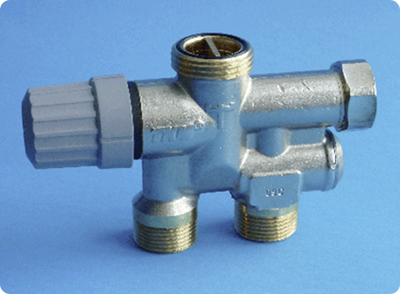

M68-RA 46F replacement valve
Same as M68-RA 46F M22 but with different threads for pipe network.
Dimension Item number
M18x1.5 M6846F2
M18x1.5 M6846F2
M21x1.5 M6846F5
M23X1.5 M6846F7
M24X1.5 M6846F8
M68-RA 46SF
Loop presetting
Bottom-connected single-pipe valve with connection to the floor. The valve is reversible with the thermostat on the right or left. The radiator flow is 40% and the flow direction is selectable. The valve is equipped with a built-in loop throttle valve. The valve can be recognized by its black hex cap for setting the resistance coefficient, Kv value, which is done using a setting template.
Dimension Item number
M22x1.5 M6846SF6

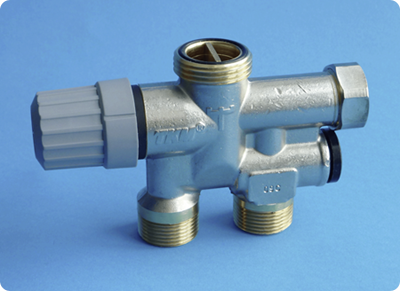

M68-RA 46SF replacement valve
Loop presetting
Same as M68-RA 46SF M22 but with different threads for pipe network.
Dimension Item number
M18x1.5 M6846SF2
M21x1.5 M6846SF5
M23x1.5 M6846SF7
M24x1.5 M6846SF8
TKM M68 Bottom-connected valves, 1-pipe, wall
M68F
Radiator presetting

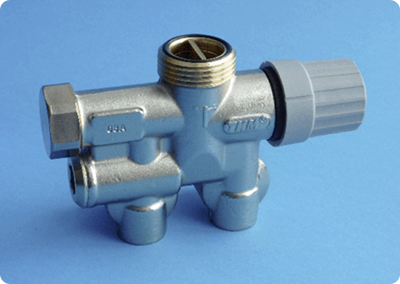

M68-RA 86F
Bottom-connected single-pipe valve with wall connection. The valve has the thermostat on the right. The radiator flow is presettable between 20-80%, the delivery setting is 40%. The flow direction is selectable, but the recommended flow direction is with the inlet furthest from the thermostat at high distribution ratios. The valve can be recognized by its conical hexagon socket for adjusting the radiator flow, which is done using a setting template and a 4.5 mm hexagon socket wrench.
Dimension Item number
M22x1.5 M6886F6
M68F, replacement valves
M68-RA 86F replacement valve
Same as M68-RA 86F M22 but with different threads for pipe network.
Dimension Item number
M18x1.5 M6886F2
M21x1.5 M6886F5
M24x1.5 M6886F8
M68 86 SF
Loop presetting

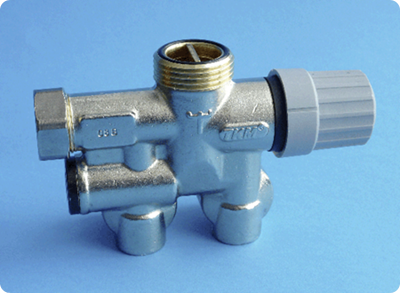

M68-RA 86SF
Bottom-connected single-pipe valve with wall connection. The valve has the thermostat on the right. The radiator flow is 40% and the flow direction is selectable. The valve is equipped with a built-in loop throttle valve. The valve can be recognized by its black hex cap for setting the resistance coefficient, Kv value, which is done using a setting template.
Dimension Item number
M22x1.5 M6886F6
M68 86 SF, replacement valves
M68-RA 86SF replacement valve
Same as M68-RA 86SF M22 but with different threads for pipe network.
Dimension Item number
M18x1.5 M6886SF2
M21x1.5 M6886SF5
Bottom connected 2 pipes
TKM M68 Bottom-connected valves, 2 pipes, floor
M68-RA 2000
Bottom-connected two-pipe valve with connection to the floor. The valve is reversible with the thermostat on the right or left. The capacity is presettable between Kv values 0.04 and 0.60. The delivery setting is 0.60 m3/h at 1 bar. The flow direction is fixed with the inlet furthest from the thermostat, as indicated by the flow arrows on the valve body.
Dimension Item number
M22x1.5 M68206
M68-RA 2000 replacement valve
Same as M68-RA 2000 M22 but with M21x1.5 thread to pipe network.
Dimension Item number
M21x1.5 M68205
TKM M68 Bottom-connected valves, 2-pipe, wall-mounted
M68-RA 2100
Bottom-connected two-pipe valve with wall connection. The valve has the thermostat on the right. The capacity is presettable between Kv values 0.04 and 0.60. The delivery setting is 0.60 m3/h at 1 bar. The flow direction is fixed with the inlet furthest from the thermostat, as indicated by the flow arrows on the valve body.
Dimension Item number
M22x1.5 M68216
M68-RA 2100, replacement valve
Same as M68-RA 2100 M22 but with M21x1.5 thread for pipe network.
Dimension Item number
M21x1.5 M68215
Valve coupling 1 pipe
RAKE-GA
Single-pipe connector RAKE-GA
Radiator connector for single-pipe systems with connection to the floor. The valve connector is reversible for mounting on the right or left side.
The radiator flow is fixed at 40% with the supply closest to the radiator according to the flow arrows on the manifold.
The manifold has a built-in shut-off with an open bypass, which means that other radiators in the loop are not affected when a single radiator is shut off.
Pipe lengths are adapted for most radiator heights and brands.
Connection to pipe network M22x1.5.
Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22x1.5
RAKE-VB
Single pipe connector RAKE-VB
Radiator connector for single pipe systems with connection to the floor.
The valve connector is reversible for mounting on the right or left side.
The radiator flow is adjustable from 5-60%, delivery setting 35%.
Supply furthest from the radiator according to the flow marking on the manifold.
The manifold has a built-in shut-off with open bypass, which means that other radiators in the loop are not affected when a single radiator is closed.
Pipe lengths are adapted for most radiator heights and brands.
Connection to pipe network M22x1.5.
Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22x1.5
RAKE-VB-TP
Single pipe connector RAKE-VB-TP
Radiator connector for single pipe systems with connection to the floor.
The valve connector is reversible for mounting on the right or left side.
The radiator flow is adjustable from 5-60%, delivery setting 35%.
Supply furthest from the radiator according to the flow marking on the manifold.
The manifold has a built-in shut-off with open bypass, which means that other radiators in the loop are not affected when a single radiator is closed.
The connection and pipe lengths are adapted to TP radiators with banjo screw connections on the back of the radiator.
Dimension
TP-Banjo M22x1.5
Valve coupling 2 pipes
RAK-VB
Double pipe connector RAK-VB
Radiator coupling for two-pipe systems with reversible distributor for connection to the floor or to the side. The valve coupling can be mounted on the right or left side of the radiator. The radiator flow is presettable between Kv 0.04 and 0.50, the delivery setting is 0.50 m3/h at 1 bar.
Supply furthest from the radiator when connecting to the floor and at the top when mounting to the side, according to the flow marking on the distributor housing.
The distributor has a built-in shut-off for both supply and return, which allows a single radiator to be drained.
Pipe lengths are adapted for most radiator heights and brands. Connection to pipe network M22x1.5.
Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22x1.5
RAK-VBN
Two-pipe coupling RAK-VBN
Radiator coupling for two-pipe systems with reversible distributor for connection to the floor or to the side.
The valve coupling can be mounted on the right or left side of the radiator.
The control valve can be rotated for niche mounting, for example. The radiator flow is presettable between Kv 0.04 and 0.56; the delivery setting is 0.56 m3/h at 1 bar.
Supply furthest from the radiator when connecting to the floor and at the top when mounting to the side, according to the flow marking on the distributor housing.
The distributor has a built-in shut-off for both supply and return, which allows a single radiator to be drained.
Pipe lengths are adapted for most radiator heights and brands. Connection to pipe network M22x1.5.
Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22x1.5
RAK-VB-TP
Two-pipe coupling RAK-VB-TP
Radiator coupling for two-pipe systems with reversible distributor for connection to the floor or to the side.
The valve coupling can be mounted on the right or left side of the radiator.
The radiator flow is presettable between Kv 0.04 and 0.50; the delivery setting is 0.50 m3/h at 1 bar.
The supply is furthest from the radiator when connected to the floor and at the top when mounted to the side, according to the flow marking on the distributor housing. The manifold has a built-in shut-off for both the supply and return, which allows a single radiator to be drained.
The connection and pipe lengths are adapted to TP radiators with banjo screw connections on the back of the radiator.
Dimension
TP-Banjo M22x1.5
RAK-VBN-TP
Two-pipe coupling RAK-VBN
Radiator coupling for two-pipe systems with reversible distributor for connection to the floor or to the side.
The valve coupling can be mounted on the right or left side of the radiator.
The control valve can be rotated for niche installation, for example.
The radiator flow is presettable between Kv 0.04 and 0.56; the delivery setting is 0.56 m3/h at 1 bar.
The supply is furthest from the radiator when connected to the floor and at the top when mounted to the side, according to the flow marking on the distributor housing.
The manifold has a built-in shut-off for both the supply and return, which allows a single radiator to be drained.
The connection and pipe lengths are adapted to TP radiators with banjo screw connections on the back of the radiator.
Dimension
TP-Banjo M22x1.5
RAK-GA
Two-pipe coupling RAK-GA
Radiator coupling for two-pipe systems with floor connection.
The valve coupling can be mounted on the right or left side of the radiator.
The radiator flow is presettable between Kv 0.04 and 0.59, the delivery setting is 0.59 m3/h at 1 bar.
Supply closest to the radiator according to the flow arrows on the manifold.
The manifold has a built-in shut-off valve, which allows a single radiator to be removed without draining the system or the riser.
Pipe lengths are adapted for most radiator heights and brands.
Connection to pipe network M22x1.5. Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22.1,5
RAK-GAN
Two-pipe coupling RAK-GAN
Radiator coupling for two-pipe systems with floor connection.
The valve coupling can be mounted on the right or left side of the radiator.
The control valve can be rotated, e.g. for niche mounting.
The radiator flow is presettable between Kv 0.04 and 0.59, the delivery setting is 0.59 m3/h at 1 bar.
Supply closest to the radiator according to the flow arrows on the manifold.
The manifold has a built-in shut-off valve, which allows a single radiator to be removed without draining the system or the riser.
Pipe lengths are adapted for most radiator heights and brands.
Connection to pipe network M22x1.5. Connection to radiator G1/2″ or G3/8 with O-ring seal.
Dimension
RP1/2-M22x1.5
Radical / Radiquick, 1-pipes
RADICAL-1FLX
Flexible single-pipe valve with floor connection.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between 10-60%, with a delivery setting of 40%.
The flow direction is fixed with the supply closest to the shut-off on the manifold.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system or affecting other radiators in the loop.
Connection to pipe network M22x1.5.
Dimension
M22x1.5-G1/2
RadiQuick 1-Q&E15
Flexible single-pipe valve with connection to the floor. The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between 10-60%, the delivery setting is 40%.
The flow direction is linked to the supply closest to the shut-off on the manifold.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system or affecting other radiators in the loop.
Connection to pipe network Quick & Easy 15.
Dimension
Q&E15-G1/2
RadiQuick 1-Q&E16
Flexible single-pipe valve with connection to floor.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between 10-60%, the delivery setting is 40%.
The flow direction is linked to the supply closest to the shut-off on the manifold.
With the control and shut-off valve closed, the radiator can be dismantled without
draining the heating system or affecting other radiators in the loop.
Connection to Quick & Easy 16 pipe network.
Dimension
Q&E16-G1/2
Radical / Radiquick, 2-pipes
Radical-2FLX
Flexible two-pipe valve with flexible pipe connection.
The pipes are concealed by the radiator and can be positioned in the center of the window.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between Kv 0.02 and 0.48, the delivery setting is 0.48 m3/h at 1 bar.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system.
Connection to pipe network M22x1.5 to radiator G1/2″ with O-ring seal.
Dimension
M22x1.5-G1/2
RadiQuick 2-Q&E12
Flexible two-pipe valve with connection to flexible pipes.
The pipes are concealed by the radiator and can be positioned in the center of the window.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between Kv 0.02 and 0.48; the delivery setting is 0.48 m3/h at 1 bar.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system.
Connection to Quick & Easy 12 pipe network to radiator G1/2″ with O-ring seal.
Dimension
Q&E12-G1/2
RadiQuick 2-Q&E16
Flexible two-pipe valve with connection using flexible pipes.
The pipes are concealed by the radiator and can be positioned in the center of the window.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between Kv 0.02 and 0.48; the delivery setting is 0.48 m3/h at 1 bar.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system.
Connection to Quick & Easy 16 pipe network to radiator G1/2″ with O-ring seal.
Dimension
Q&E15-G1/2
RadiQuick 2-Q&E16
Flexible two-pipe valve with connection using flexible pipes.
The pipes are concealed by the radiator and can be positioned in the center of the window.
The valve can be positioned with the thermostat on the right or left.
The radiator flow is presettable between Kv 0.02 and 0.48; the delivery setting is 0.48 m3/h at 1 bar.
With the control and shut-off valve closed, the radiator can be dismantled without draining the heating system.
Connection to Quick & Easy 16 pipe network to radiator G1/2″ with O-ring seal.
Dimension
Q&E16-G1/2
Accessories
TKM/M68 radiator connection with 170 mm pipe
TKM radiator connection 021730
Radiator connection for radiators with G1/2″ connection at the bottom or side.
The insert can be rotated 180 degrees to switch between supply and return. G3/4″ union nut fits all TKM® M68 valves.
Supply through the dip tube for bottom-connected radiators and return through the dip tube for side-connected radiators.
Pipe length 170 mm, adapted to the radiator.
Dimension Item number
Rp1/2-G3/4 021730
TKM/M68 radiator connection with 400 mm pipe
TKM radiator connection 021730
Radiator connection for radiators with G1/2″ connection at the bottom or side.
The insert can be rotated 180 degrees to switch supply and return.
G3/4″ union nut fits all TKM®-M68 valves.
Supply through the dip tube for bottom-connected radiators and return through the dip tube for side-connected radiators.
Pipe length 400 mm, adapted to the radiator.
Dimension Item number
Rp1/2-G3/4 021730B
TKM/M68 radiator connection excl. pipe
TKM radiator connection 021730C
Radiator connection for radiators with G1/2″ connection at the bottom or side.
Excluding dip tube.
The insert can be rotated 180 degrees to switch between supply and return.
The G3/4″ union nut fits all TKM®-M68 valves.
Dimension Item number
Rp1/2-G3/4 021730C
TKM/M68 angle connection
Rp/2-G3/4 ANSTKM65
TKM/M68 Flow diverter
Item number
022727
TKM/M68 Gasket with boom
Item number
021701A
TKM steering wheel RA
Item number
8010
Handwheel RAVL
Item number
8009
TKM protective cover RA.
Item number
HUVRA
SGB-connection
Dimension Item number
M18x
M18x1,5-10mm KL1810
M18x1,5-12mm KL1812
M21x
M21x1,5-10mm KL2110
M21x1,5-12mm KL2112
M21x1,5-14mm KL2114
M21x1,5-15mm KL2115
M21x1,5-16mm KL2116
M22x
M22x1,5-10mm KL2210
M22x1,5-12mm KL2212
M22x1,5-14mm KL2214
M22x1,5-15mm KL2215
M22x1,5-16mm KL2216
M22x1,5-18mm KL2218
M24x
M24x1,5-12mm KL2412
M24x1,5-14mm KL2414
M24x1,5-15mm KL2415
M24x1,5-16mm KL2416
M24x1,5-18mm KL2418
SGB-Blindkona
Dimension Item number
M18-12 KOB1812
M21-15 KOB2115
M22-15 KOB2215
Angle coupling
Angle coupling, short
Dimension Item number
Ø15-M22x1,5 VIN016
Angle coupling, long
Dimension Item number
Ø15-M22x1,5 VIN016L NOTE: SAME DIM AS ABOVE!
Iron pipe connection
Dimension Item number
Ø12-G3/8 JÄRN10
Ø15-G1/2 JÄRN15
Iron pipe connection, eccentric
Eccentric iron pipe connection with 2.5 mm offset.
Can convert c/c 40 mm to c/c 35 mm, for example.
Dimension Item number
Ø15-G1/2 JÄRN15E
Eccentric coupling with play nut
Eccentric M22 coupling
Eccentric coupling with spherical seal with 15 mm offset and internal and external M22x1.5 thread.
Dimension Item number
M22x1,5 VAEX15
Radiator connection
Dimension
R1/2-M22x1,5
Radiator connection
Dimension
R3/8-M22x1,5
Angle connection VB and GA
Angle connection VB (as shown)
Dimension Item number
M22x1,5 VINKDA
Angle connection GA
Dimension Item number
M22x1,5 VINKGA
Transition-nipple with O-ring
Dimension Item number
M22 – G1/2″ 021700
